SWITCHES
LEVER-LITE ? ILLUMINATED LEVER SWITCHES – SERIES 84000 PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
LEVER SWITCHES (continued)
LEVER-LITE ? III SERIES 84000 - ILLUMINATED
LEVER SWITCHES
SPECIFYING LEVER-LITE ? III SWITCHES
1. Basic Switch - Refer to Part Number table for ordering
switches. For special switches, such as talk-listen
(intercom) function, special circuit forms, or
non-illuminated switches, contact factory for price
and delivery.
2. Illumination - Supplied with standard color filters installed.
Switchcraft will install other combinations at nominal
extra cost.
3. Lamps - Lamps are not supplied with switches.
SPECIFICATIONS
Mounting/Retaining Clips and Covers: Steel, plated.
Contact Ratings: Welded cross bar palladium contacts
rated at 1A, 200W maximum AC non-inductive load are
standard. Other contacts available. See “SPECIAL
ORDER FEATURES” on page 295.
PART NUMBERS
TWO POSITION
Springs: Copper alloy, plated.
Lamp Terminals: Copper alloy, plated.
Lamp Socket: Zinc, plated.
Terminals: Copper alloy, plated, straight solder lugs.
Housing, Escutcheon, Knob, Actuator and
Switching Stacks Insulation: Molded plastic.
Temperature Range: -22°F to 158°F (-30°C to +70°C).
Dielectric Strength: 1 kV DC.
Leakage Resistance: 1,000 M ? or greater.
K-131 COLOR FILTER KIT
Kit is available for changing or replacing color filters to meet
illumination requirements. Each kit contains 3 filters of each
color: Amber, Blue, Green, Red, White and Yellow.
SWITCHCRAFT PART NUMBER K-131
REPLACEMENT LEVERS
Number G6083 (for locking lever)
Number G6084 (for non-locking lever)
THREE POSITION
Part Numbers
Part Numbers
Position 1 Position 2
Non-Locking
? 84206
? 84212
Locking
84206L
? 84212L
Switching
2-C
4-C
? 84306
? 84312
? 84324
84306L
84312L
84324L
1-C
2-C
4-C
1-C
2-C
4-C
? Special order only; contact Switchcraft.

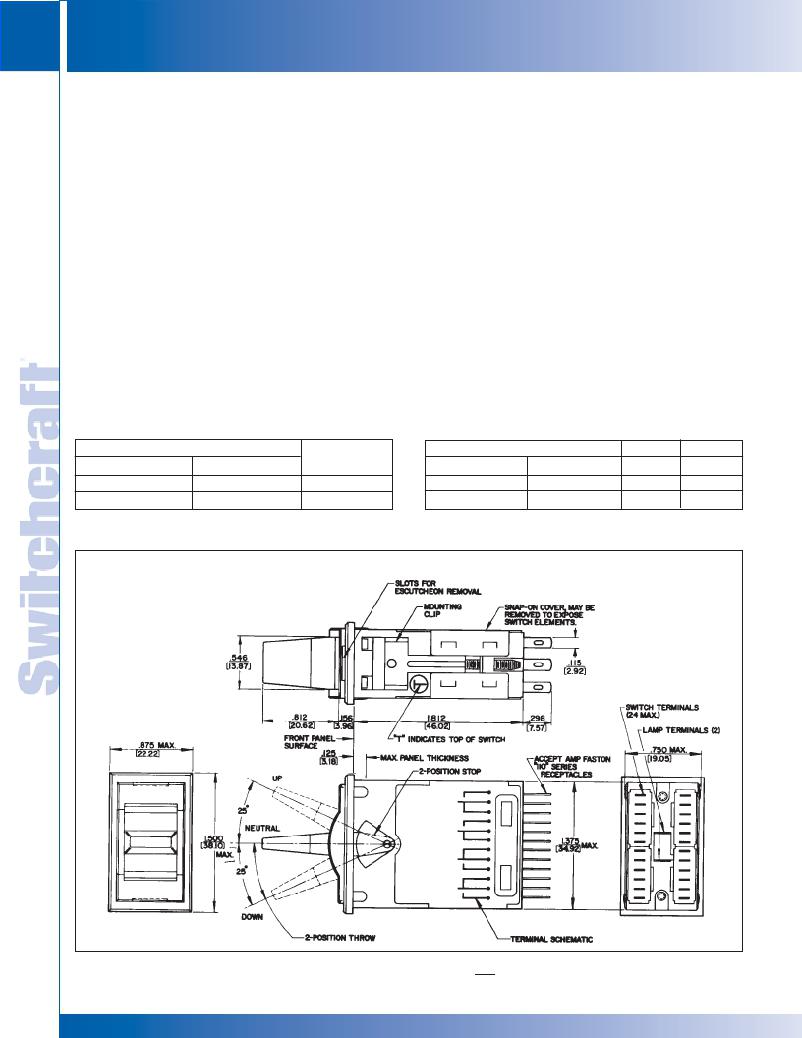

LEVER-LITE? SERIES 84000
PANEL OPENING
.750" (19.05mm)
x 1.375" (34.92mm)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
